    BELTING BUILT AROUND YOUR SYSTEM, NOT ADAPTED TO IT

    In automated fulfillment, the belt is rarely the first thing anyone thinks about, and almost always the reason a system stops moving. Live roller conveyors run continuously, accumulate constantly, and depend on a drive belt that tracks true, welds cleanly, and holds its tension through millions of cycles.



    The Gates IntraLogix™ family takes a different approach to that problem. Rather than adapting one general-purpose belt across every conveyor bed, each IntraLogix belt is engineered around a specific conveyance system that is matched to its roller geometry, drive configuration, and duty cycle. The result is a unified belting portfolio that lets operators spec the exact belt their equipment was commissioned to run, backed by in-region, for-region manufacturing and Gates application engineering support.



    DOWNLOAD THE INTRALOGIX FAMILY BROCHURE

    WHAT TO DO WHEN STANDARDIZATION DOESN’T EXIST

    As operators consolidate suppliers and standardize MRO inventory, there's understandable pressure to find one belt that works everywhere. The problem is that conveyance systems have moved in the opposite direction. ARP beds, zero-pressure accumulation zones, and flat skew-bed drives each impose fundamentally different demands; different roller geometry, different lateral forces, different failure behavior under twist.



    A general-purpose belt adapted into a system it wasn't designed for introduces variables nobody asked for: tracking drift, inconsistent welds, premature edge wear, zone timing that no longer matches what the line was commissioned around. The IntraLogix™ family resolves the tension between consolidation and fit. Each belt is engineered around a specific conveyance platform, LRB-100 for Vanderlande ARP .M, LRB-77 to Intelligrated IntelliQ™ specification, LRB-45 for Dematic flat drive beds, while all three are ordered, stocked, and supported through a single Gates channel. Operators get specification-level fit without adding a supplier for every system, backed by in-region, for-region manufacturing that shortens supply timelines.

    LEARN MORE ABOUT INTRALOGIX LRB-100

    INTRALOGIX™ LRB-100 - THE NEXT GENERATION OF ARP BELTING

    LRB-100 replaces traditional flat PVC belts with applicated v-guides with a fully homogeneous, co-extruded design. The v-guide is integral to the belt body, which eliminates delamination (a common premature failure mode in the industry) rather than simply resisting it. The result is more consistent tracking, stronger welds, and significantly lower total cost of ownership.





    • More than 5x longer belt life vs. competitor ARP belts*
    • Integrated v-guide eliminates delamination
    • Self-aligning notched v-guide for consistent field welds

    *On average, compared to equivalent competitor ARP belts in accelerated Dyno testing.



    DOWNLOAD THE SELL SHEET

    EXPLORE THE LRB-100 PRODUCT PAGE

    INTRALOGIX™ LRB-77 - ENGINEERED TO OEM SPECIFICATION, PROVEN ON THE FLOOR.

    LRB-77 was developed with Intelligrated and refined across more than ten years of field-proved performance. Its v-guide geometry is designed to perfectly match Intelligrated pressure roller grooves, holding the belt centered through the lateral forces that accumulation zones generate every cycle.





    • Specification-level fit to the original drive belt
    • Abrasion-resistant 87 Shore A polyurethane sustains drive force to carrier rollers
    • Aramid cords carry up to 3,600 N (810 lbf) while resisting creep that forces re-tensioning



    DOWNLOAD THE SELL SHEET

    EXPLORE THE LRB-77 PRODUCT PAGE

    INTRALOGIX™ LRB-45 - TORSIONAL STIFFNESS FOR APPLICATIONS WHERE GEOMETRY WORKS AGAINST YOU

    Guided belts solve tracking with geometry seated in a groove. Flat drive beds have no groove, so the belt itself must stay square to the rollers, which comes down to how well the belt resists twist. LRB-45 is built around that requirement, making it the correct specification for skew bed sections where more compliant belting rides up on one edge.





    • High-grip knurled diamond face transmits torque with minimal slip
    • Static-dissipative antistatic underside helps protects product and personnel
    • Superior torsional rigidity from oversized aramid cord architecture



    DOWNLOAD THE SELL SHEET

    EXPLORE THE LRB-45 PRODUCT PAGE

    REQUEST A PRODUCT SAMPLE TODAY

    Explore and validate system performance with hands-on samples of Gates IntraLogix™ belts for high-performance automated conveyance warehouses. See the difference and talk with one of our representatives about your system today.





    START YOUR REQUEST

    THERE'S MORE INTRALOGIX AROUND THE CORNER...

    The IntraLogix™ family continues to expand as Gates develops purpose-built belting for additional conveyance platforms. If you're running a live roller or logistics system not listed here, our application engineering team can help identify the right solution.



    TALK WITH AN EXPERT

    SEE THE FAMILY’S NEWEST ENGINEERING AT WORK

    Every IntraLogix™ belt is built around a specific system, and LRB-100 shows what that approach makes possible. Watch how a fully homogeneous construction changes the way an ARP belt tracks, welds, and wears.

    EXPLORE MORE INTRALOGIX APPLICATIONS

    Conveyor system moving bins in a warehouse

    ARP CONVEYORS



    Vanderlande Accumulating Roller Pneumatic .M conveyors call for IntraLogix™ LRB-100, engineered around the roller geometry and duty cycle those systems impose.

    warehouse will tall storage racks, cardboard boxes, and belt-driven conveyer systems

    AUTOMATED WAREHOUSE SYSTEMS



    From guided ARP beds to flat Dematic drives, the IntraLogix™ family covers the range of conveyance platforms running inside a single facility.

    Conveyor system moving bins in a warehouse

    PARCEL HANDLING SYSTEMS



    High-volume sortation runs multiple bed types at once. Match each one to its purpose-built belt instead of standardizing on a compromise.

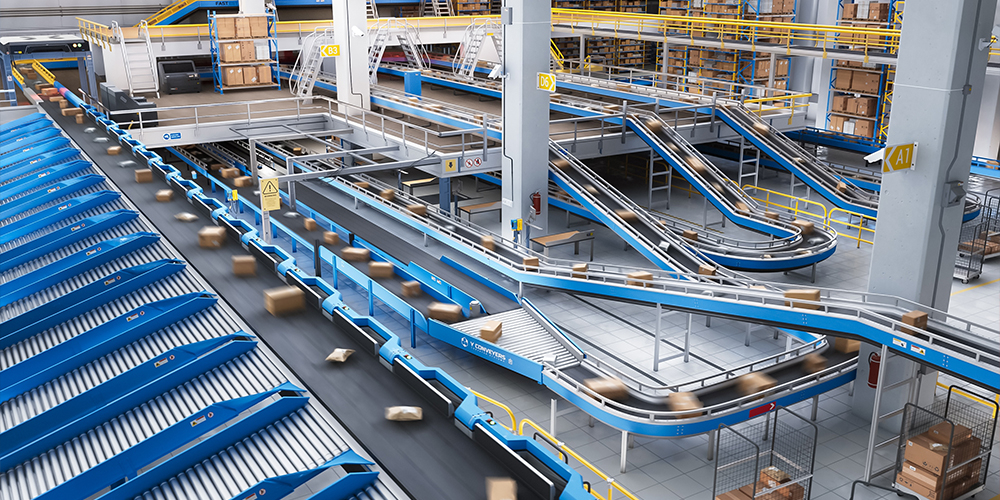

    Automated sorting facility with conveyor belts transporting packages.

    DISTRIBUTION CONVEYORS



    Whichever platform your distribution lines are built on, there's an IntraLogix™ belt dimensioned for it, ordered through a single Gates channel.

    Stacks of printed brochures with images moving along a conveyor belt in a printing facility.

    SKEW-BED CONVEYORS



    Flat Dematic drive beds have no groove to track against, so the belt itself has to resist twist which is exactly why IntraLogix™ LRB-45 was designed.
